New to framing - Corner gap, maybe underpinner

picture framing clamps by MasterClamp 2021

Briantj

Grumbler in Training
Joined
Aug 12, 2021
Messages
3
Location
Denmark
Business
Framingpeople.dk
Hi,
I am brand new to the framing world, and had a sure belief that there should not be many problems in a 90 degree joint. however, I have had some issues that I think stem from my underpinnings. The corners of the frame can be assembled perfectly on a table, but when I put a clip in, I see a small gap, the same length as the clip is, if I slide the clip in from the front of the frame, then the problem is moved to the front of the frame , and therefore I do not think it is due to the cut of the frame.
as I said, I am brand new to this world and all the help, tips and anything else I can get will be greatly appreciated.

my underpinner is an AMP U-400. I use the original "power twist" clips, I have "soft" and "medium" clips, and I have generally only done tests with soft, since my frames are soft, I have 6,5 bar into the machine, from the compressor system, and I have set the machine to anything between 2 and 6,5 bar during different tests, but I did not think there are any regularities in the joints. my current frame size is 15mm wide and 20-25mm high.

thanks in advance.
from a new frame maker.

The hammer - should it come this far up?

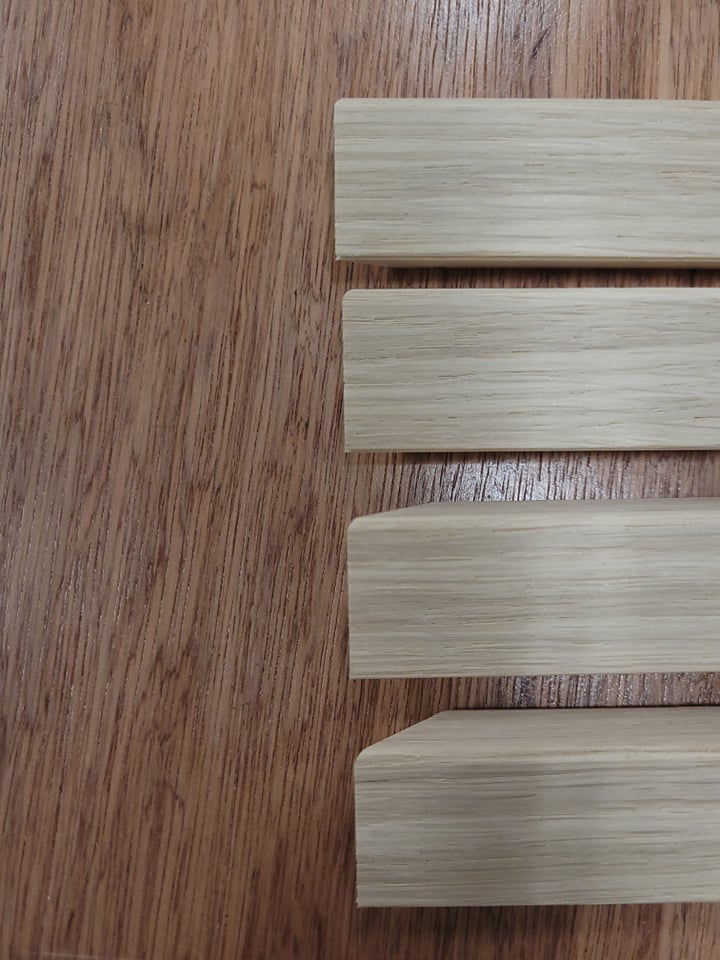

The cut before joining

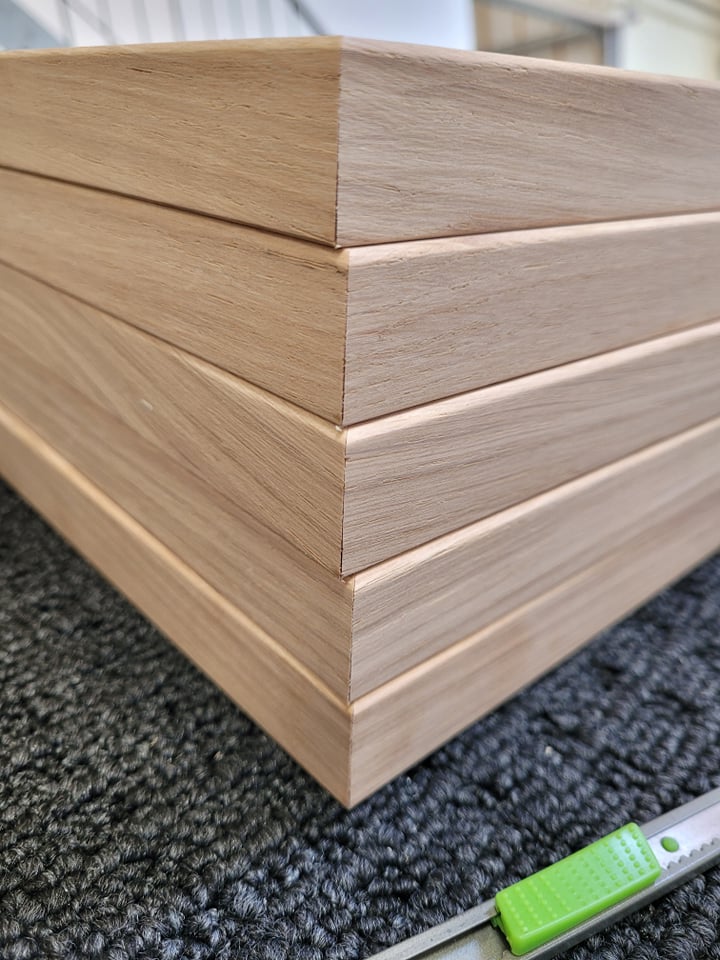

Some test frames
test rammer.jpg

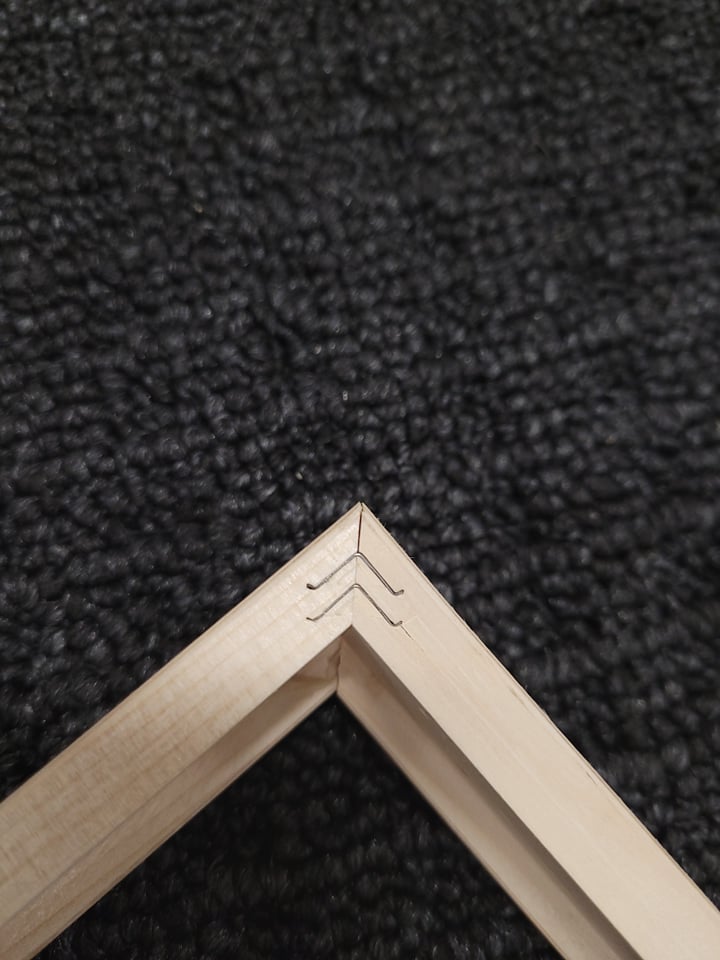

Backside of the frame
Bagside af hjørne.jpg


Jim Miller

SPFG, Supreme Picture Framing God
Forum Donor
Joined
May 19, 2000
Messages
18,755
Location
Suburban Central Ohio
The only solution I have found for that problem is to glue and vice the miters, then drive the v-nails after the glue sets up for at least several minutes. Sometimes shifting the v-nail positions toward the inside of the miter joint helps, but not always. Also, inserting the outer v-nail first helps sometimes, but again, not always.

V-nails in miter joints work the same way that a wedge works in splitting firewood. The length of the miter is expanded by the thickness of each v-nail. So, using more v-nails amplifies the problem, and using fewer v-nails probably would help.


wpfay

Comfort Badger
Forum Support Team
Forum Donor
Joined
Sep 1, 2000
Messages
13,618
Location
Jacksonville Beach, FL USA
Business
Sunshine Frames
You're putting too many v-nails in that width frame. The v-nails displace the wood when they are driven in.
Those appear to be hardwood mouldings, so trying the hardwood v-nails might help.
Jim's suggestion of glueing, then underpinning would probably help a lot.

On a lighter note, Your machine is equipped with an MC Hammer...
(Hey, somebody supply a Gif here!!!)

Last edited:
Vermont Hardwoods solid wood picture frame molding

framah

PFG, Picture Framing God
Joined
Mar 15, 2001
Messages
9,798
Location
Degobah
Business
death star driver
Sorry, best I could do on such short notice.


Larry Peterson

PFG, Picture Framing God
Forum Donor
Resource Provider
Joined
Apr 8, 2003
Messages
9,664
Location
Wilkes-Barre, PA
Sorry, best I could do on such short notice.




wpfay

Comfort Badger
Forum Support Team
Forum Donor
Joined
Sep 1, 2000
Messages
13,618
Location
Jacksonville Beach, FL USA
Business
Sunshine Frames
Back to a more serious note.

If you are going to be doing a lot of frames with that kind of profile consider getting a Hoffmann dovetailer. Far superior to v-nailing with stem profiles.

Nice touch in wrapping the grain around the corner.


Briantj

Grumbler in Training
Thread starter
Joined
Aug 12, 2021
Messages
3
Location
Denmark
Business
Framingpeople.dk
Thanks for the reply everyone.

I had probably hoped to be able to make them completely tight, without the use of glue. but it must, of course, be considered whether this is the path needed.

it's pinewood, with oak veneer, so "soft" wedges should be the right ones, right?

i only put a single v-nail in now, where is the most optimal to put this? 1/2 inside or approx. 2/3, measured from outside of frame?

If I have to get closer to a tight joint, is it my underpinner or Morso cuts I should look at?

thanks again!

Vermont Hardwoods solid wood picture frame molding

wpfay

Comfort Badger
Forum Support Team
Forum Donor
Joined
Sep 1, 2000
Messages
13,618
Location
Jacksonville Beach, FL USA
Business
Sunshine Frames
Glue is what holds the joint together.
The v-nails are designed 1. to act as an internal clamp to hold the joint together until the glue dries, and 2. to act as a fail-safe should the glue joint fail. Despite misuse and lots of misinformation, v-nails are not intended to be used without glue.

Placement of the v-nail should be closer to the inside of the frame than the outside, but exactly where is something you will have to experiment with. A lot is determined by the grain of the wood and the consistency of the density. V-nails can be deflected. Pine, depending on species, can be either a softwood or a hardwood.

It looks like the Morso is doing a fine job, so working with the underpinner to get optimal placement is the path I would take.


wpfay

Comfort Badger
Forum Support Team
Forum Donor
Joined
Sep 1, 2000
Messages
13,618
Location
Jacksonville Beach, FL USA
Business
Sunshine Frames
Tell my aged southern yellow pine floors that they aren't a hardwood.


wpfay

Comfort Badger
Forum Support Team
Forum Donor
Joined
Sep 1, 2000
Messages
13,618
Location
Jacksonville Beach, FL USA
Business
Sunshine Frames
Of course it is categorized as a softwood, but try putting a softwood v-nail in it.
Point being is that deciding which v-nail is appropriate is determined by the density of the wood, not its classification.
Southern white maple is called a hardwood, but it is slightly more dense than Basswood.

Vermont Hardwoods solid wood picture frame molding

Larry Peterson

PFG, Picture Framing God
Forum Donor
Resource Provider
Joined
Apr 8, 2003
Messages
9,664
Location
Wilkes-Barre, PA
Of course it is categorized as a softwood, but try putting a softwood v-nail in it.
Point being is that deciding which v-nail is appropriate is determined by the density of the wood, not its classification.
Southern white maple is called a hardwood, but it is slightly more dense than Basswood.
That's why I use the fingernail test to determine which vnail to use.


RoboFramer

PFG, Picture Framing God
Joined
Nov 19, 2002
Messages
8,588
Location
United Kingdom, West Sussex Coast. (Bottom centre)
Business
Retired
You've come to the right place (forget that other place where some will tell you this is acceptable, or even really good!)

With an overall width of 15mm, you only have 9 or 10mm left for V nails so two positions is one too many. One position about where your inner one is, or slightly nearer the back. For the 20mm deep moulding I'd use one 15mm V nail or stack two 7s. For the 25mm one I'd stack two tens. Plenty of glue, always.

If it was a hard wood I wouldn't attempt stacking and would probably need to clamp it while the glue dries, then I'd toss the sample and replace it with what you have, a veneer on soft(er) wood. (That's what I actually did - all my PITA oaks got swapped for veneers - still had plenty of solid oaks that were not a PITA though)

Register for the picture framer's grumble

Briantj

Grumbler in Training
Thread starter
Joined
Aug 12, 2021
Messages
3
Location
Denmark
Business
Framingpeople.dk
Hi

I have not been too good at answering back in here, but the status today is that I have put a bigger presser foot on my morso, and at the same time put a piece of veneer on. at the same time, I have experimented with a soft wax for the corners, and I have started gluing my joints on frames, with more than 700 mm, on one of the sides.

Feel free to share your thoughts on this. thanks.

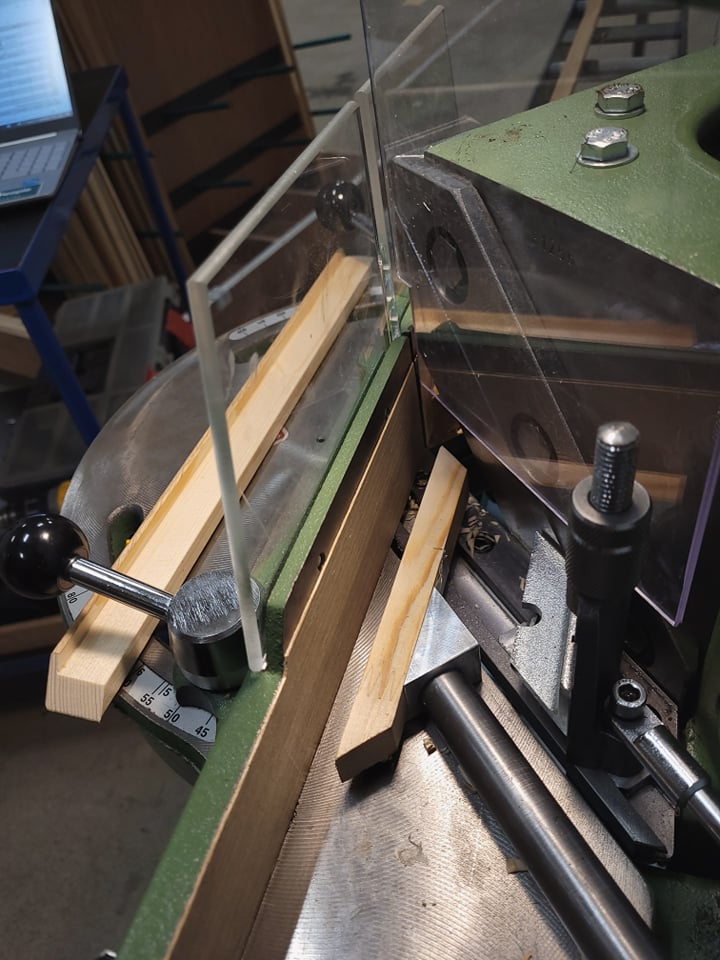

The pictures show my morso setup, as well as one of my worst corners.


Attachments

  • 242441942_1195801454250137_5228147077079308082_n.jpg
    104.8 KB · Views: 18
  • 242480807_532483104480344_86670728990541977_n.jpg
    91.6 KB · Views: 19
  • 242536435_586359516053877_3103098009084119032_n.jpg
    64.7 KB · Views: 19

Jim Miller

SPFG, Supreme Picture Framing God
Forum Donor
Joined
May 19, 2000
Messages
18,755
Location
Suburban Central Ohio
To repeat Wally's earlier point, glue is what holds the corner together. The mechanical fasteners secure the miters until the glue dries (unless you leave the corner in a vice), and then prevent catastrophic failure in case the glue bond is broken by force, such as impact. BOTH glue and mechanical fasteners are always needed.
